Product Details:
|
| Power (w): | 20/24/32/42KW | Installation: | Wall Mounted |
|---|---|---|---|
| Product Name: | Wall Mount Gas Boiler | Gas Type: | NG/LPG |
| Case Material: | Stainless Steel | Display: | LED Displayer Optional |
| Thermal Efficiency(%): | ≥108 | Color: | Black Or Printed |
| Gas Pressure(pa): | 2000/2800 | ||
| High Light: | 20kw Wall Hanging Gas Furnace,Black Case Gas Condensing Boiler 3C,20kw Gas Condensing Boiler |
||

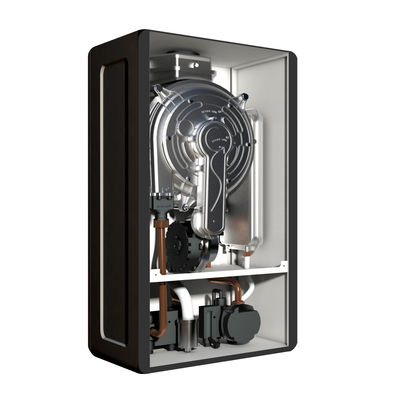

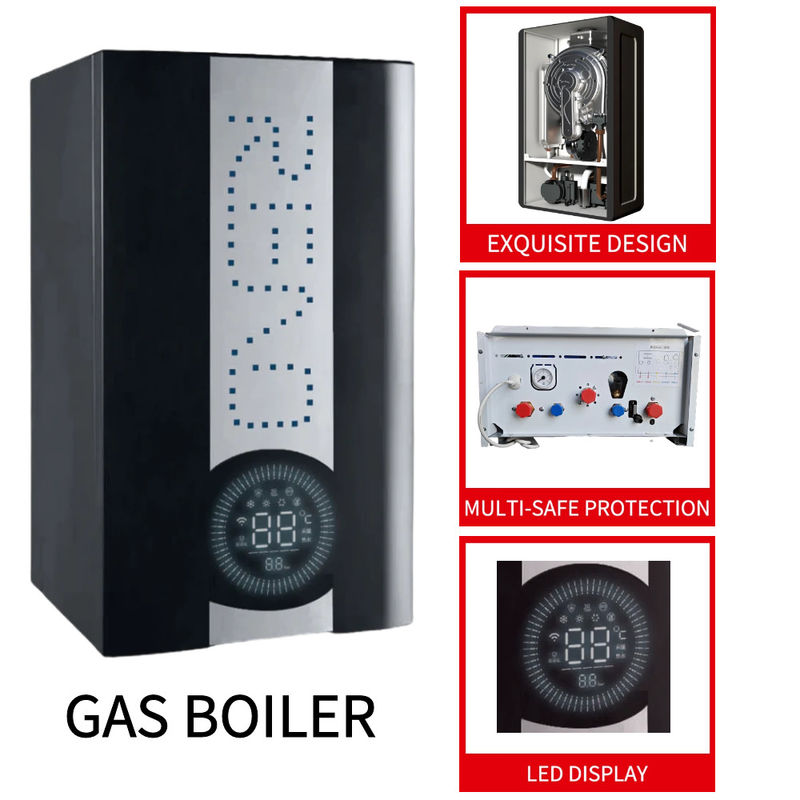

Gas Condensing 20/24/32/42Kw Wall Mounted Furnace Black Case Stainless Steel Hot Water Heating And Bath Dual Function
Introduction of Condensing gas wall hanging furnace: Condensing technology is a scientific and technological means to improve thermal efficiency. By using condensing technology, the thermal efficiency of gas wall hanging furnace is greatly improved, which also means the reduction of energy consumption; More importantly, an energy saving and environmental protection wall hanging furnace plays an irreplaceable role in improving users' living environment and quality of life. The biggest feature of condensing type wall hanging furnace is to achieve excellent energy saving effect relying on condensing technology.
Product Main Technical Parameter Table
| the rated powder input(KW) | 20 | 24 | 32 | 42 |
| the rated powder output(KW) | 21.6 | 25.9 | 34.5 | 45.3 |
| the thermal efficiency(%) | ≥108 | ≥108 | ≥108 | ≥108 |
| rated voltage frequency(V/Hz/W) | 220/230/50 | 220/230/50 | 220/230/50 | 220/230/50 |
| the gas pressure(Pa) | natural:2000 | the gas pressure:2800 | ||
| living hot water temperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| heating watertemperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| domestic hot water production(kg/min ) | 8 | 9.4 | 13.6 | 17.5 |
| living hot water apply pressure(mpa) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| heating system apply pressure(mpa) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| the hightest pressure heating system(mpa) | 3 | 3 | 3 | 3 |
| height,width,thickness(mm) | 740*410*315 | 740*410*315 | 740*410*315 | 740*410*315 |
| weight(kg) | 40 | 40 | 40 | 40 |
| pipe connectors(G) | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 |
| diameter of smoke pipe(mm) | 60/100 | 60/100 | 60/100 | 60/100 |
Function description of some major accessories:The role of the main board: It is used to control the start and stop of the HVAC equipment, and constant temperature of the system.The role of the air pressure switch: The air pressure switch is mainly responsible for the safety protection in the wall mounted furnace system. It is divided into two chambers by a valve inside, and the two chambers on both sides of the valve are respectively connected with two pressure measuring tubes. By comparing the pressure obtained by the pressure measuring tube, it can detect whether the smoke exhaust system is normal.
The role of the burner: It can ensure the normal combustion of gas, which from the nozzle high pressure injection into the burner inside the Venturi tube, causing the pressure in the tube down. Air (the first air) is inhaled and mixed with gas, Which will rush out gas hole to burn. The air that is still insufficient after the first mixing is partially mixed by the second mixing of air around the fire to form a complete combustion.
Product Main Technical Parameter Table
Qingdao Hiounce HVAC Equipment Co., Ltd. is located in the beautiful coast al city of Qingdao, is a gas heating furnace,condensing gas boiler, gas module furnace as the leading, set design, research and development, production, sales in one of the high-tech enterprises.
The company has more than 100 employees, the company covers an area of 13600 square meters, plant area of 7500 square meters, all kinds of production and processing equipment more than 100 sets. The company has an annual output of 120,0 00 sets of wall mounted furnace and modern production line and equipped with advanced testing equipment. According to the high standard of the industry, the company built the research and development laboratory, the life laboratory, the incoming material laboratory and the finished product laboratory.
Q:Are you trading company or manufacturer ?
A:We are factory,located at Qingdao City, China. Welcome your visitanytime!
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Exceptweekend and holidays).lf the quantity is not too much, we can offerfor free but delivery cost should be collected. Different products have different MOO, we can discuss step by step.
O:What is the lead time?
A:Usuallv,for small order, our lead time is 15-30davs.If bulk order isover 10000pcs,lead time needs to be discussed step by step.We havestock for most ofour models.
Q:What is your payment terms?
A:We accept T/T and L/C. Others we can dicsuss together.lf you canpay RMB, it will be better.
Q:Do you have a guarantee of your product quality?
A:Now our products are produced in strict quality control system anddefective rate is un-der0.01%. For the defective products, we cansend new ones to replace along with your new order.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPSDHL.TNT.FEDEX and ect). Please confirm with us before placing orders.
Q:What is your major product?
A: Our major product is Wall hung gas boiler,Condensing gas heatingboiler.Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
