Product Details:
|
| Power (w): | 20/24/40KW | Gas Type: | NG/LPG |
|---|---|---|---|
| Installation: | Wall Mounted | CPU: | Imported |
| Color: | GOLDEN | Covering Material: | Stainless Steel |
| Gas Pressure(pa): | 2000/2800 | Display: | LED Displayer Optional |
| Pretection Mearure Kind: | 21 Kinds Of Security Protection Measure | Product Name: | Wall Mount Gas Boiler |
| Thermal Efficiency(%): | ≥90 | ENERGY EFFICIENCY: | First Level |
| CONTROL SYSTEM: | INTELLIGENT STYLE | Main Component: | Imported |
| High Light: | Golden Shell Wall Mounted Combi Boiler,Wall Mounted Combi Boiler 24KW,Gas Wall Mounted Boiler Low Failure Rate |
||
Gas Wall Mounted Boiler Low Failure Rate Golden Shell Imported Cpu Heating And Bath Function
Features
1 High quality material

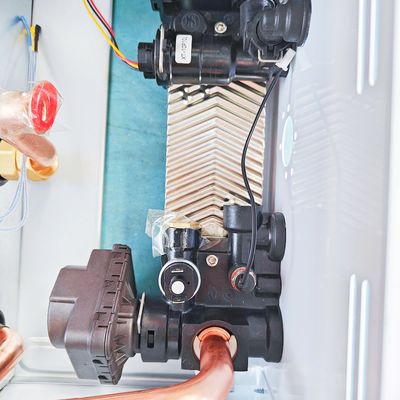

The heat exchanger is made of high quality purple copper, with high thermal efficiency. The burner adopts high quality stainless steel, high temperature and corrosion resistant, long service life. The shell is made of high quality steel, high strength, strong protection and durable.
2 Exquisite technology
The automatic production line is adopted, with fine and reasonable division of labor, and each work station is compiled with detailed operation instructions and operating procedures, so that the production quality is always guaranteed in a controllable state.
3High quality performance
Product Main Technical Parameter Table
| the rated powder input(KW) | 20 | 24 | 32 | 42 |
| the rated powder output(KW) | 21.6 | 25.9 | 34.5 | 45.3 |
| the thermal efficiency(%) | ≥108 | ≥108 | ≥108 | ≥108 |
| rated voltage frequency(V/Hz/W) | 220/230/50 | 220/230/50 | 220/230/50 | 220/230/50 |
| the gas pressure(Pa) | natural:2000 | the gas pressure:2800 | ||
| living hot water temperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| heating watertemperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| domestic hot water production(kg/min ) | 8 | 9.4 | 13.6 | 17.5 |
| living hot water apply pressure(mpa) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| heating system apply pressure(mpa) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| the hightest pressure heating system(mpa) | 3 | 3 | 3 | 3 |
| height,width,thickness(mm) | 740*410*315 | 740*410*315 | 740*410*315 | 740*410*315 |
| weight(kg) | 40 | 40 | 40 | 40 |
| pipe connectors(G) | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 |
| diameter of smoke pipe(mm) | 60/100 | 60/100 | 60/100 | 60/100 |
Q:Are you trading company or manufacturer ?
A:We are factory,located at Qingdao City, China. Welcome your visitanytime!
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Exceptweekend and holidays).lf the quantity is not too much, we can offerfor free but delivery cost should be collected. Different products have different MOO, we can discuss step by step.
O:What is the lead time?
A:Usuallv,for small order, our lead time is 15-30davs.If bulk order isover 10000pcs,lead time needs to be discussed step by step.We havestock for most ofour models.
Q:What is your payment terms?
A:We accept T/T and L/C. Others we can dicsuss together.lf you canpay RMB, it will be better.
Q:Do you have a guarantee of your product quality?
A:Now our products are produced in strict quality control system anddefective rate is un-der0.01%. For the defective products, we cansend new ones to replace along with your new order.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPSDHL.TNT.FEDEX and ect). Please confirm with us before placing orders.
Q:What is your major product?
A: Our major product is Wall hung gas boiler,Condensing gas heatingboiler.Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
