Product Details:
|
| CPU: | Imported | Color: | Light Green |
|---|---|---|---|
| Covering Material: | Stainless Steel | Gas Type: | NG/LPG |
| Gas Pressure(pa): | 2000/2800 | Display: | LED Displayer Optional |
| ENERGY EFFICIENCY: | First Level | Pretection Mearure Kind: | 21 Kinds Of Security Protection Measure |
| Power (w): | 26KW | Product Name: | Wall Mount Gas Boiler |
| Installation: | Wall Mounted | Thermal Efficiency(%): | ≥90 |
| CONTROL SYSTEM: | INTELLIGENT STYLE | Main Component: | Imported |
| High Light: | 26Kw Wall Hanging Gas Furnace,Wall Hanging Gas Furnace ISO14001,26Kw Wall Hung Boilers Imported Cpu |
||

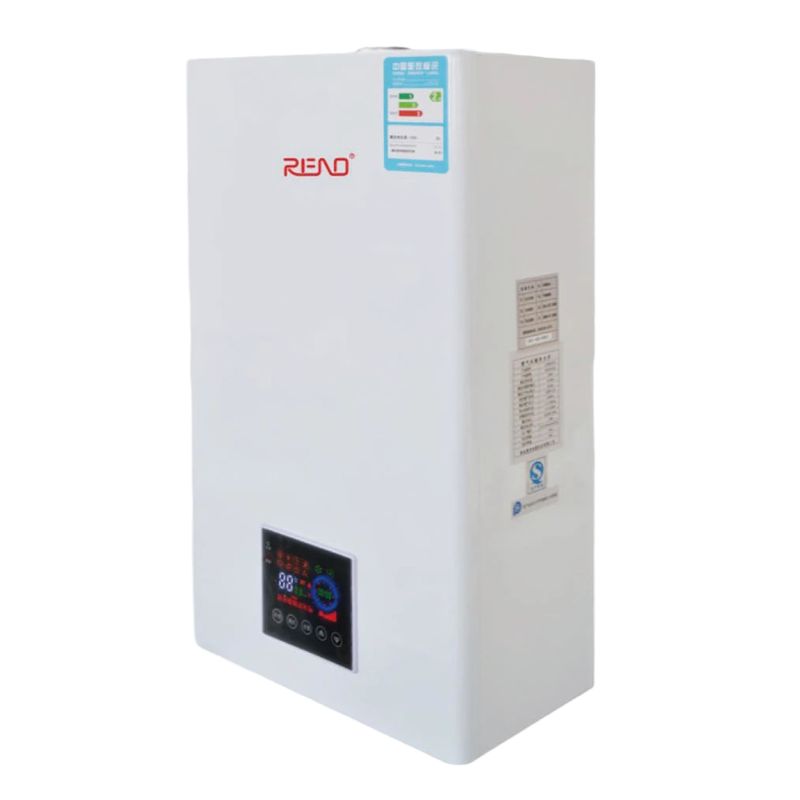

26Kw New Fanshion Gas Wall Mounted Boiler Light Green Shell Imported Cpu Heating And Bath Function
The product should have a full range of safety protection functions.
(1) has a temperature sensor, water temperature constant adjustment function and can be connected to the indoor temperature controller.
(2) must have electronic ignition induction, leakage grounding, lightning protection, with automatic flame detection device, flame accidentally extinguished, the gas stove automatically cut off the gas valve; in the water circuit, circuit, gas circuit failure or pressure is not normal when the automatic stop furnace and alarm.
(3) leakage protection, anti-freeze protection, explosion-proof combustion protection, heating system voltage stabilization protection, heating pipeline antioxidant protection, three-minute delay protection, temperature limit protection.
Product Main Technical Parameter Table
| the rated powder input(KW) | 20 | 24 | 32 | 42 |
| the rated powder output(KW) | 21.6 | 25.9 | 34.5 | 45.3 |
| the thermal efficiency(%) | ≥108 | ≥108 | ≥108 | ≥108 |
| rated voltage frequency(V/Hz/W) | 220/230/50 | 220/230/50 | 220/230/50 | 220/230/50 |
| the gas pressure(Pa) | natural:2000 | the gas pressure:2800 | ||
| living hot water temperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| heating watertemperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| domestic hot water production(kg/min ) | 8 | 9.4 | 13.6 | 17.5 |
| living hot water apply pressure(mpa) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| heating system apply pressure(mpa) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| the hightest pressure heating system(mpa) | 3 | 3 | 3 | 3 |
| height,width,thickness(mm) | 740*410*315 | 740*410*315 | 740*410*315 | 740*410*315 |
| weight(kg) | 40 | 40 | 40 | 40 |
| pipe connectors(G) | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 |
| diameter of smoke pipe(mm) | 60/100 | 60/100 | 60/100 | 60/100 |
Q:Are you trading company or manufacturer ?
A:We are factory,located at Qingdao City, China. Welcome your visitanytime!
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Exceptweekend and holidays).lf the quantity is not too much, we can offerfor free but delivery cost should be collected. Different products have different MOO, we can discuss step by step.
O:What is the lead time?
A:Usuallv,for small order, our lead time is 15-30davs.If bulk order isover 10000pcs,lead time needs to be discussed step by step.We havestock for most ofour models.
Q:What is your payment terms?
A:We accept T/T and L/C. Others we can dicsuss together.lf you canpay RMB, it will be better.
Q:Do you have a guarantee of your product quality?
A:Now our products are produced in strict quality control system anddefective rate is un-der0.01%. For the defective products, we cansend new ones to replace along with your new order.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPSDHL.TNT.FEDEX and ect). Please confirm with us before placing orders.
Q:What is your major product?
A: Our major product is Wall hung gas boiler,Condensing gas heatingboiler.Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
