Product Details:
|
| CPU: | Imported | Color: | Pale Green |
|---|---|---|---|
| Covering Material: | Stainless Steel | Gas Type: | NG/LPG |
| Gas Pressure(pa): | 2000/2800 | Display: | LED Displayer Optional |
| ENERGY EFFICIENCY: | First Level | Pretection Mearure Kind: | 21 Kinds Of Security Protection Measure |
| Power (w): | 28KW | Product Name: | Wall Mount Gas Boiler |
| Installation: | Wall Mounted | Thermal Efficiency(%): | ≥90 |
| CONTROL SYSTEM: | INTELLIGENT STYLE | Main Component: | Imported |
| High Light: | 28kw Wall Mount Water Heater,Wall Mounted Condensing Boiler 28kw,Green Shell Wall Mounted Condensing Boiler |
||

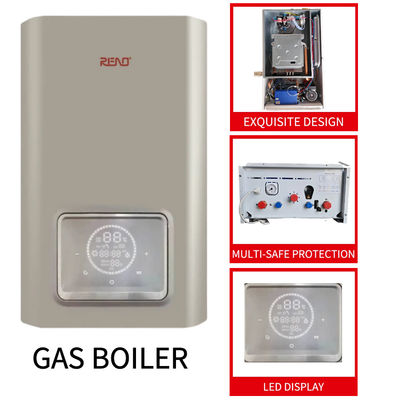

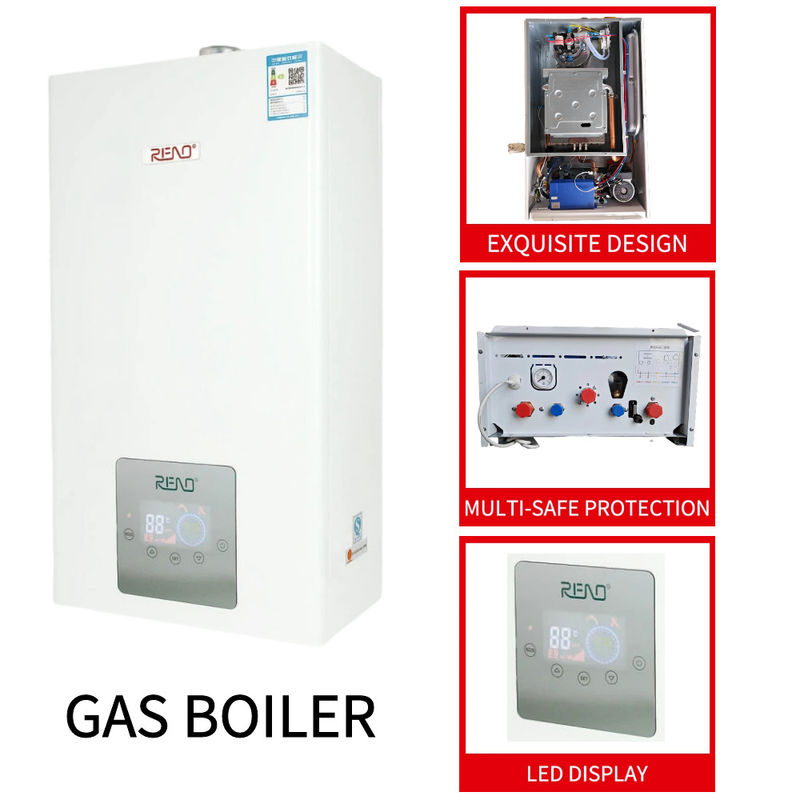

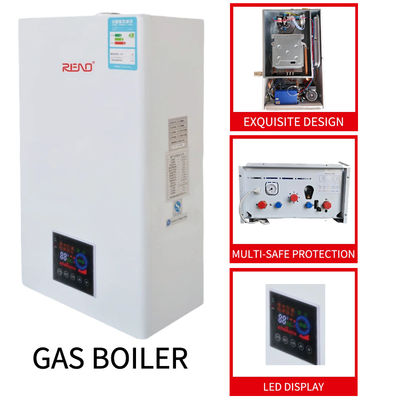

28kw New Fanshion Gas Wall Mounted Boiler Light Green Shell Imported Cpu Heating And Bath Function
Gas Boilers Feature:
1. Water supply for both kitchen and bathroom: meet the hot water demand of one kitchen, two bathrooms, and multi-bathroom families
2. 360 airtight and quiet comfort: the fully sealed body structure provides a quiet, comfortable and leak-proof experience
through sound absorption, noise reduction and sealing barrier
3. Nine protections and comprehensive protection: multiple protection technology combinations, produced in accordance with European safety standards, constitute a protection system, create comprehensive protection with all our heart, and strive to let you enjoy bathing with peace of mind
Product Main Technical Parameter Table
| the rated powder input(KW) | 20 | 24 | 32 | 42 |
| the rated powder output(KW) | 21.6 | 25.9 | 34.5 | 45.3 |
| the thermal efficiency(%) | ≥108 | ≥108 | ≥108 | ≥108 |
| rated voltage frequency(V/Hz/W) | 220/230/50 | 220/230/50 | 220/230/50 | 220/230/50 |
| the gas pressure(Pa) | natural:2000 | the gas pressure:2800 | ||
| living hot water temperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| heating watertemperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| domestic hot water production(kg/min ) | 8 | 9.4 | 13.6 | 17.5 |
| living hot water apply pressure(mpa) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| heating system apply pressure(mpa) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| the hightest pressure heating system(mpa) | 3 | 3 | 3 | 3 |
| height,width,thickness(mm) | 740*410*315 | 740*410*315 | 740*410*315 | 740*410*315 |
| weight(kg) | 40 | 40 | 40 | 40 |
| pipe connectors(G) | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 |
| diameter of smoke pipe(mm) | 60/100 | 60/100 | 60/100 | 60/100 |
