Product Details:
|
| CPU: | Imported | Color: | Pale Green |
|---|---|---|---|
| Gas Type: | NG/LPG | Gas Pressure(pa): | 2000/2800 |
| CONTROL SYSTEM: | INTELLIGENT STYLE | Display: | LED Displayer Optional |
| ENERGY EFFICIENCY: | First Level | Covering Material: | Stainless Steel |
| Pretection Mearure Kind: | 21 Kinds Of Security Protection Measure | Power (w): | 40KW |
| Product Name: | Wall Mount Gas Boiler | Installation: | Wall Mounted |
| Thermal Efficiency(%): | ≥90 | Main Component: | Imported |
| High Light: | PLG Wall Mounted Boiler,40kw Wall Mounted Boiler,ICS Wall Hanging Gas Furnace |
||

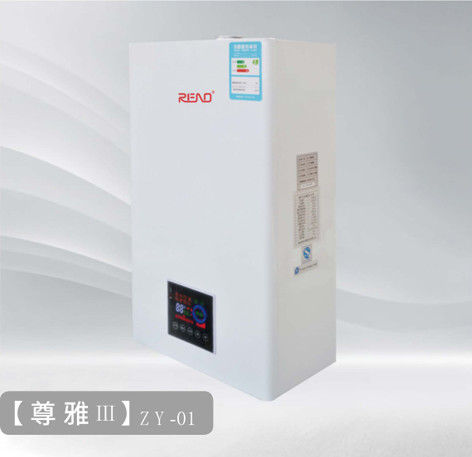

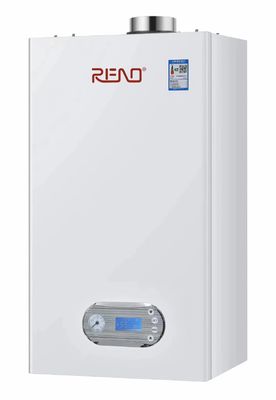

40kw Current Wall Hanging Natural GasOr PLG Wall Mounted Boiler
FEATURES:
Wall-mounted gas boiler for heating with the possibility of variable connection of domestic hot water tank. The boiler can also operate with a minimum output of 20 – 40 kW which is a great advantage for family houses.
DHW heating in external storage tank
Possibility of connecting the boiler to the Internet and equithermal regulation
High modulation ratio 1:10
ICS (intelligent combustion system)
Product Main Technical Parameter Table
| the rated powder input(KW) | 20 | 24 | 32 | 42 |
| the rated powder output(KW) | 21.6 | 25.9 | 34.5 | 45.3 |
| the thermal efficiency(%) | ≥108 | ≥108 | ≥108 | ≥108 |
| rated voltage frequency(V/Hz/W) | 220/230/50 | 220/230/50 | 220/230/50 | 220/230/50 |
| the gas pressure(Pa) | natural:2000 | the gas pressure:2800 | ||
| living hot water temperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| heating watertemperature adjusting range(℃) | 30-80 | 30-80 | 30-80 | 30-80 |
| domestic hot water production(kg/min ) | 8 | 9.4 | 13.6 | 17.5 |
| living hot water apply pressure(mpa) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
| heating system apply pressure(mpa) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| the hightest pressure heating system(mpa) | 3 | 3 | 3 | 3 |
| height,width,thickness(mm) | 740*410*315 | 740*410*315 | 740*410*315 | 740*410*315 |
| weight(kg) | 40 | 40 | 40 | 40 |
| pipe connectors(G) | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 | heating water supply:3/4 |
| diameter of smoke pipe(mm) | 60/100 | 60/100 | 60/100 | 60/100 |
The advantages of fully premixed condensing wall hanging furnace are:
1. The fully premixed condensing gas wall - mounted furnace has higher thermal efficiency and lower CO and NOX content. The test shows that when the fully premixed wall hanging furnace burns natural gas, the smoke exhaust temperature is 80℃ lower than the ordinary gas wall hanging furnace, and the thermal efficiency is more than 15% higher than the ordinary wall hanging furnace, which is more energy saving.
2. The inverted combustion mode of ceramic plate burner at the top can effectively avoid the influence of condensed water falling on the burner, gas combustion and gas heat transfer.
3. The finned tube welded aluminum alloy heat exchanger is used in condensing wall hanging furnace. Its performance can meet the requirements. Its manufacturing cost is lower than that of stainless steel heat exchanger and cast aluminum heat exchanger.
Q:Are you trading company or manufacturer ?
A:We are factory,located at Qingdao City, China. Welcome your visitanytime!
Q:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Exceptweekend and holidays).lf the quantity is not too much, we can offerfor free but delivery cost should be collected. Different products have different MOO, we can discuss step by step.
O:What is the lead time?
A:Usuallv,for small order, our lead time is 15-30davs.If bulk order isover 10000pcs,lead time needs to be discussed step by step.We havestock for most ofour models.
Q:What is your payment terms?
A:We accept T/T and L/C. Others we can dicsuss together.lf you canpay RMB, it will be better.
Q:Do you have a guarantee of your product quality?
A:Now our products are produced in strict quality control system anddefective rate is un-der0.01%. For the defective products, we cansend new ones to replace along with your new order.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPSDHL.TNT.FEDEX and ect). Please confirm with us before placing orders.
Q:What is your major product?
A: Our major product is Wall hung gas boiler,Condensing gas heatingboiler.Gas Water Heater, Electric Water Heater, Gas Hob, Range Hood, Gas Oven, and other kitchen appliances.
